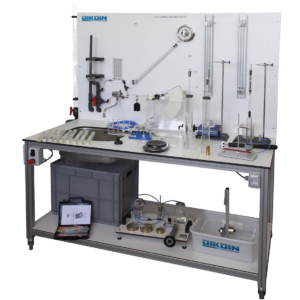

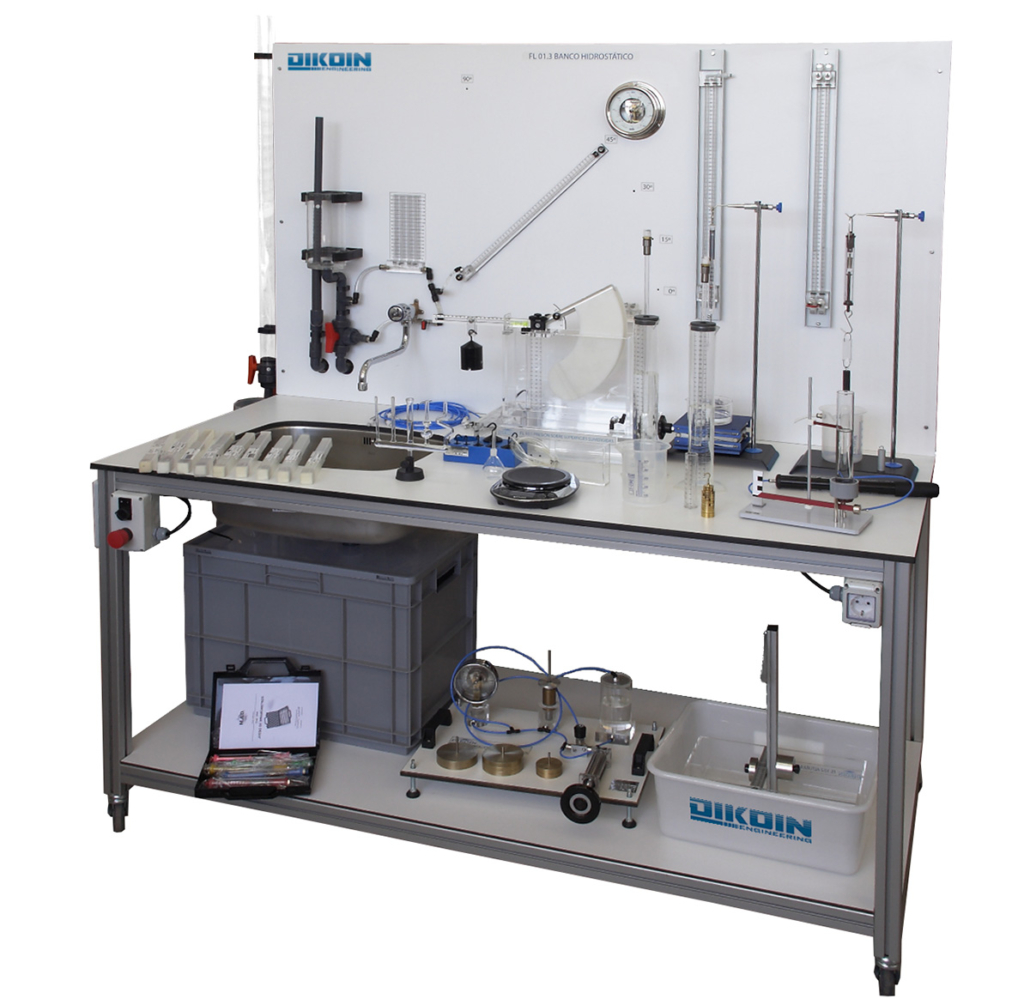

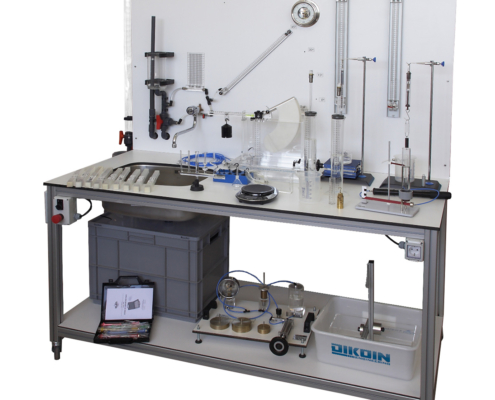

FL 01.3 – Hydrostatic Bench

This equipment is designed for the study of both properties, and the most important in the static fluid phenomena.

Description

The user manual clearly shows with a large number of images, the entire process to be followed to use the equipment.

The practical manual shows and explains all the theoretical foundations, as well as the mathematical formulas used for the realization of all the experimentation.

Included Accessory: FL 10.1 – HYDROSTATIC PRESSURE ON SUBMERGED SURFACES

This equipment aims the study and determination of the pressure force acting on a submerged surface in a liquid. It is a simple and completely autonomous equipment that can be located anywhere in the laboratory without any installation.

Liquids of different densities can be used to determine the influence of this on the exerted pressure force.

Included Accessory: FL 10.2 – METACENTRIC HEIGHT

The principle of Archimedes says that: “Every body submerged in a liquid experiences a vertical thrust and upward equal to the weight of the liquid dislodged”.

With this equipment is intended to study and calculate the metacentric height of a floating body, which pretends to be a boat.

Included Accessory: FL 13.1 – MANOMETER CALIBRATION

The objective of this equipment is the study and calibration of manometers, as well as the visualization and understanding of its operation.

You can find more information on the PDF datasheet

Learning Objectives

With this equipment a lot of studies can be done in the following areas:

  • Measurement of densities.
  • Demonstration of Pascal’s law.
  • Study and demonstration of the capillary.
  • Determination of viscosity.
  • Pressure measurement.
  • Calibration of gauges.
  • Archimedes law.
  • Stability of a floating body.
  • Pressure energy, potential and kinetic.
  • Pressure on submerged surfaces.
  • Metacentric height.
Technical Data

Tank:

  • Storage capacity 50 litres.

Densities:

  • Pycnometer volume 50ml.
  • Hydrometers
  • From 700 to 800
  • From 800 to 900
  • From 00 to 1000
  • From 1000-1100
  • From 1100 to 1200
  • From 1200 to 1300
  • From 1300-1400
  • From 1400-1500
  • From 1500-1600

DYNAMOMETERS:

  • 100g/1N; 2g/0,02N.
  • 250g/2,5N; 5g/0,05N.
  • 500g/5N; 10g/0,1N.
  • 1000g/10N; 20g/0,2N.
  • 2000g/20N; 40g/0,4N.
  • 5000g/50N; 100g/1N.



Capillarity:

  • Diameter glass tubes:
  • Øinterior = 17,3 mm
  • Øinterior = 5 mm
  • Øinterior = 2,1 mm
  • Øinterior = 1,4 mm

Manometers:

  • Barometer.
  • Water column of 600 mm.
  • Column of mercury 600 mm. *
  • 1,000 mm mercury column. Absolute pressure. *
  • Adjustable inclined at 15, 30, 45 and 90.



Other elements:

  • Falling ball viscometer:
  • Ø 4 mm
  • Ø 5 mm
  • Ø 7 mm
  • Ø 8 mm
  • Electronic balance 5Kg x 1g.



Dimensions:

1715 x 1900 x 800 mm

Requirements
  • Electrical connection: 230V / 50Hz.

    NOTE: *Mercury not included.
