FLB 11.1 – Jet Stream Forces

This equipment is designed to prove the theoretical expressions that determine the force applied by a jet stream on different types of impact plates.

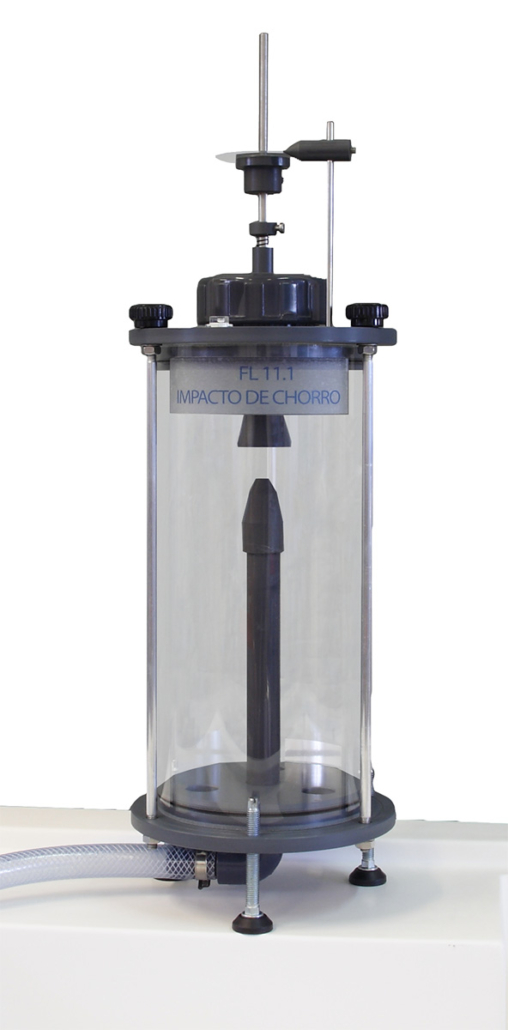

The equipment, operating on the hydraulic bench, shows to perfection the impact of the jet stream on the target plate under study, thanks to its transparent case.
The bubble level allows the correct levelling of the equipment for improving  the results accuracy.
    • Fast and simple replacement of target plates.
    • Connectivity to a hydraulic bench
    • Four different target plate types: 30º, 90º, 120º and 180º.
Learning Objectives
  • Study and determination of the jet forces.
  • Influence of the different deflector angles:
    • 30º
    • 90º
    • 120º
    • 180º
  • Influence of the jet stream linear speed.
Technical Data
    • 30º
    • 90º
    • 120º
    • 180º
    • 10 x 100 g.
    • Diameter: 8 mm.
  • Hydraulic bench FL 01.4 or FL 01.5 or FL 01.6
