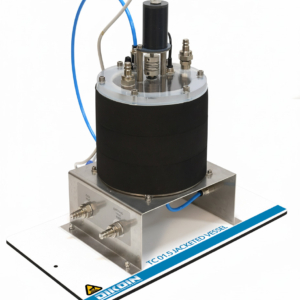

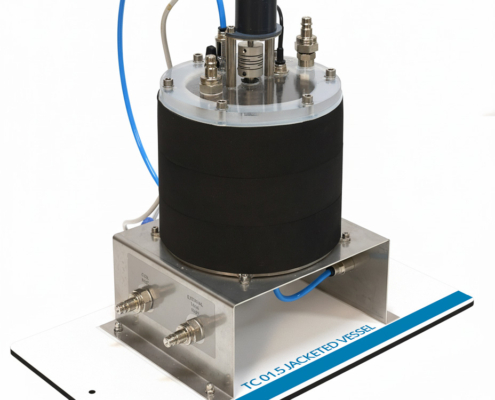

TC 01.5 – Double Jacketed Vessel and Coil Heat Exchanger

This type of heat exchanger is commonly used in the chemical and process industries, particularly in applications where a precise fluid temperature is required.

Download PDF
Description

The system can operate using either an external jacket or an internal coil, and it supports both continuous flow operation and batch heating of a defined liquid volume.

It includes a thermocouple for real-time monitoring of the fluid temperature inside the vessel, as well as a stirrer that allows analysis of the effect of agitation on heat transfer performance.

Learning Objectives
  • Energy balance in the exchanger.
  • Temperature log mean value difference study.
  • Determination of the global coeficient of heat transfer.
  • Efectivity calculation.
Technical Data
  • Dimensions: 440 x 250 x 430 mm
  • Inner vessel capacity: 1981 cm3
  • Coil lenght: 275 cm
  • Coil-inner vessel exchange surface: 0,052 m2
  • Exterior vessel capacity: 1669 cm3
  • Inner-outer vessel exchange surface: 0,062 m2
Requirements
  • TC 01.1 HEAT EXCHANGER SUPPLY UNIT
