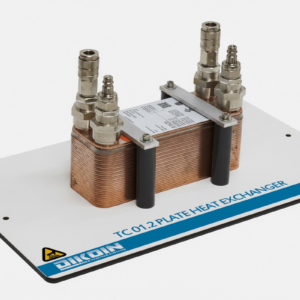

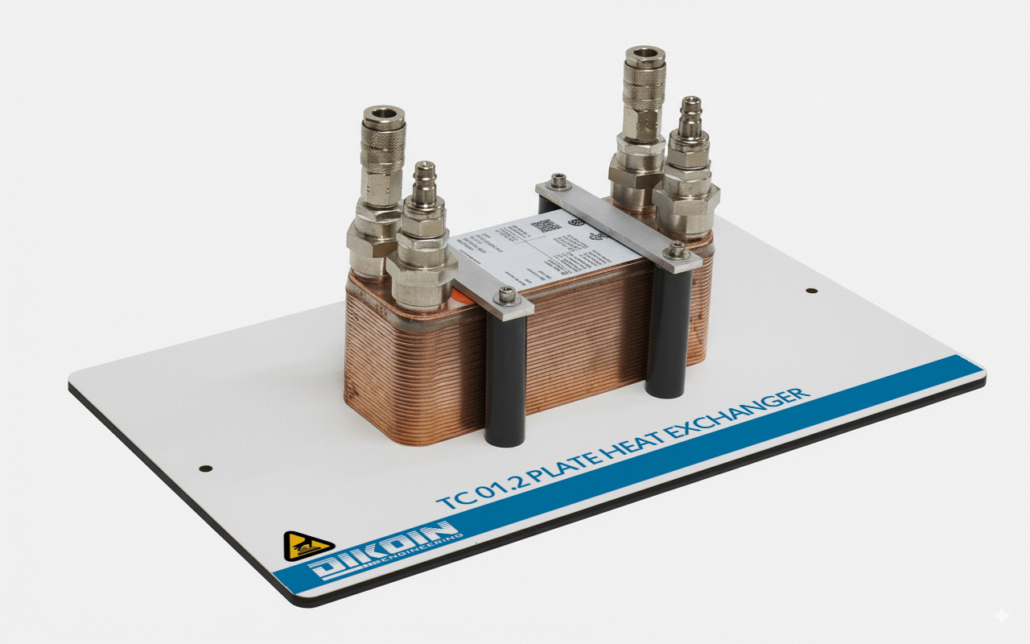

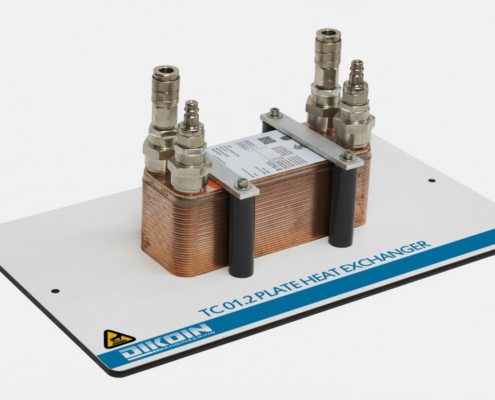

TC 01.2 – Plate Heat Exchanger

In the plate heat exchanger, hot and cold fluids flow through alternating channels formed between the plates, enabling efficient heat transfer between them.

Download PDF
Description
One of the main advantages of this type of heat exchanger is its compact size, making it particularly suitable for installations with limited space.

Additionally, the plates feature a geometry that induces fluid turbulence, significantly enhancing the system’s thermal performance.
Learning Objectives
  • Balance of energies in the exchanger.
  • Calculate the log mean temperature difference.
  • Determination of the overall heat transfer coefficient.
  • Calculation of effectiveness.
Technical Data
  • Dimensions: 440x250x150mm
  • Number of rings: 30
  • Heat transfer surface: 0,39 m2
Requirements
  • TC 01.1 HEAT EXCHANGER SUPPLY UNIT
